3550 5m x 2m Platform trailer
Model 3550 is the largest standard platform trailer at 16ft x 6ft6 with options to increase the platform size
- Gross Weight: 3500kg
- Unladen Weight: 740kg
- Capacity: 2760kg
Model 3550 is the largest standard platform trailer at 16ft x 6ft6 although the body length can be increased to 22ft and the width to 7ft or 7ft6. Three axles can also be fitted but any increase in unladen weight will reduce the payload within the 3500kg maximum legal gross weight.
All trailers in the platform trailer range are fully galvanised, and have Avonride softride fully independent rubber suspension axles and a hydraulically damped hitch with a lockable cast coupling and power assisted hand brake.
Standard equipment includes a phenol coated plywood floor, flush fitting side rails with post sockets and roping hooks, spare wheel, a front telescopic jockey wheel and full road lights.

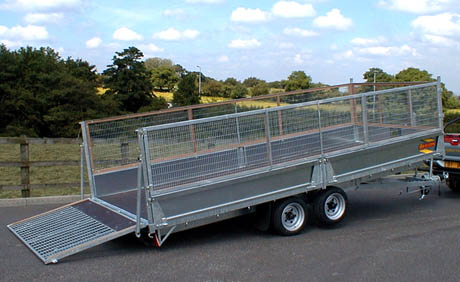

Model 3550 with twin axles is available with a hydraulic tilting body and ramp door to load equipment with a low ground clearance. Steel sides are available for trailers up to 16' long
| GROSS WEIGHT | 3500kg |
| UNLADEN WEIGHT | 740kg |
| CAPACITY | 2760kg |
Dimensions and weights correct at time of writing, subject to change without notice, please contact us if these are critical.
Overall
| Length | 6100 |
| Width | 2000 |
| Height | - |
| Tow ball height | 450 |
Dimensions and weights correct at time of writing, subject to change without notice, please contact us if these are critical.
Internal
| Length | 5000 |
| Width | 2000 |
| Height | - |
| Platform Height | 700 |
Dimensions and weights correct at time of writing, subject to change without notice, please contact us if these are critical.
Extra Length; 7.0m
Factory additional length. Note this will increase the unladen weight affecting the capacity

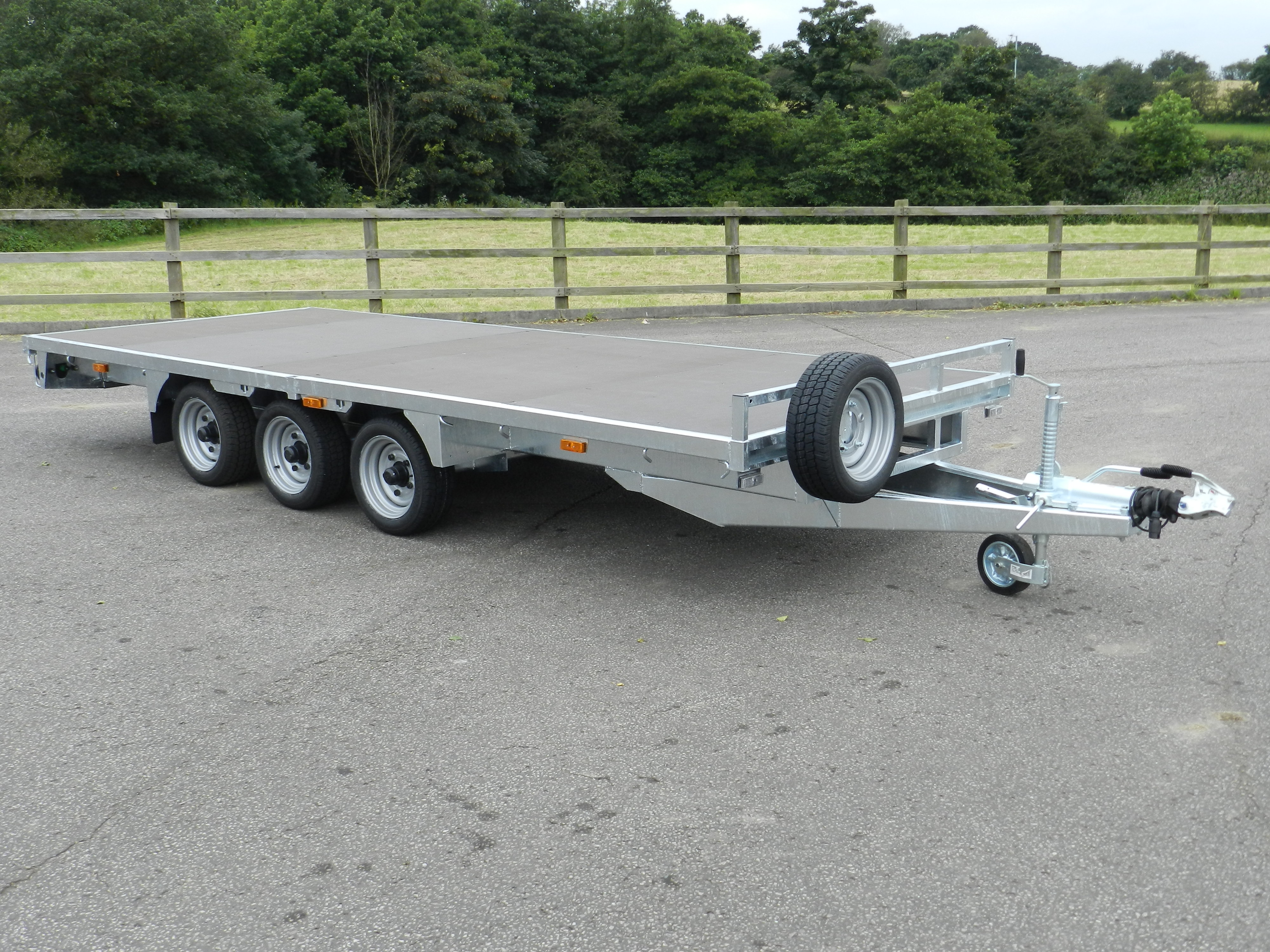

$2,400Third Axle
Factory additional axle. Note this will increase the unladen weight by 90kg affecting the legal capacity although providing a greater capacity in terms of strength.
$2,000Tilting bed option
Factory additional axle. Note this will increase the unladen weight affecting the legal capacity although providing a greater capacity in terms of strength.
$2,000Extra Length; 5.6m
Factory additional length. Note this will increase the unladen weight affecting the capacity
$800Extra Length; 6.2m
Factory additional length. Note this will increase the unladen weight affecting the capacity
$1,600Extra Width; 2.3m
Factory additional width. Note this will increase the unladen weight affecting the capacity

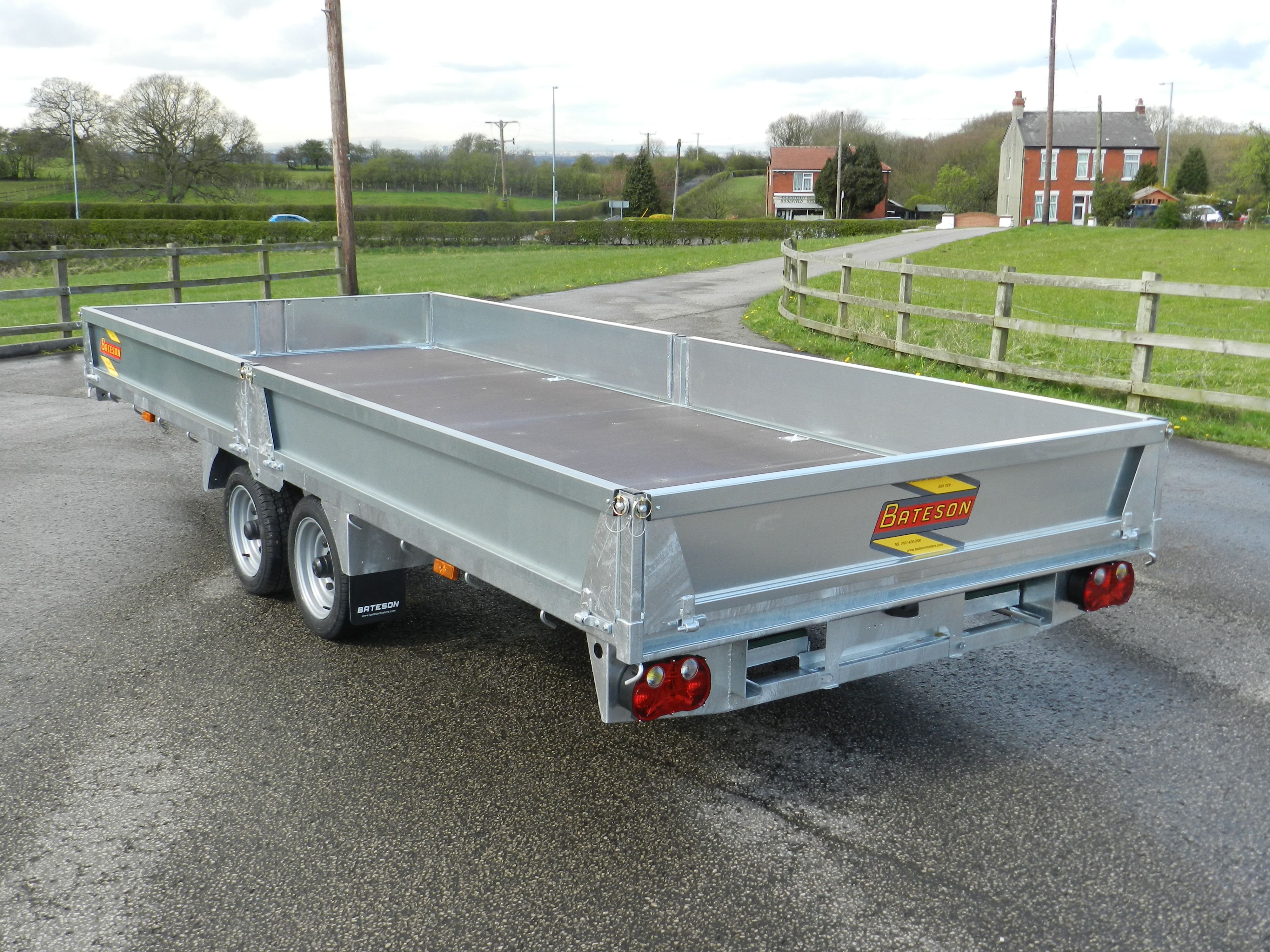

$85030cm Steel sides
Only available on the standard 5m length option.
$1,450Loading Ramps (pair)
Factory fitted ramp carriers under the rear of the trailer. Ramps can be positioned anywhere along the rear edge of the trailer
$550Please call Lee on 027 3310 846 for availability until we finish upgrading our systems allowing you to book online.
*Note: Any pricing is indicative only due to challenging international shipping and supply events outside of our control. Pricing stated does not include optional extras.
